This Tool Qualification Kit (TQK) is an adaption of the Tool Qualification Kit for ISO 26262-8 provided by Siemens PLM. The Work Items, LiveDoc Documents, Test Runs, and their workflows were adjusted to the data model and objectives of the aviation standard RTCA DO-330 Software Tool Qualification Considerations.
The TQK enables users to execute the qualification of a Tool Chain containing one or multiple Tools. The TQK can be used for the qualification of Polarion implementations (in combination with other software tools) or software tools independent of Polarion. The TQK allows the qualification based on Operational Testing (defining and executing Test Cases) or the Tool's Service History.

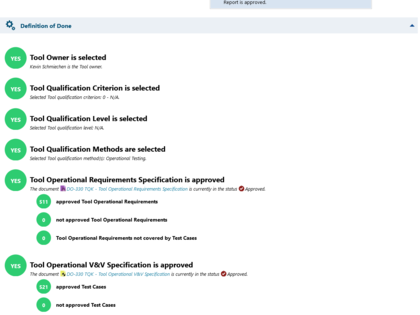

Automatic process assurance checks ensure that the tool qualification data is complete and correct before being released. Scripts in the tool qualification report documents automatically fill those sections of the documents that can be created based on the tool qualification data available in a structured form in the TQK.

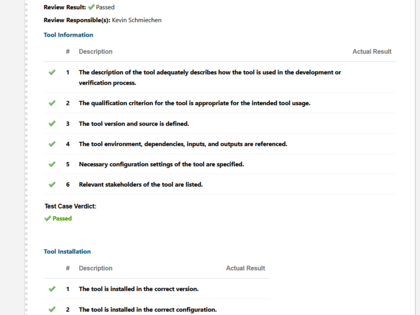

The TQK also contains a review framework to implement a formal document and test result review process. Separate review checklists can be defined for each document and test result type. The reviews are conducted as Test Runs directly in Polarion where remarks and results are recorded for each individual check of the applicable review checklist.
In total, the TQK contains the following Work Item, Document, and Test Run types:
- Work Items: Tool Chain, Tool, Tool Environment, Artifact, Installation Evidence, Tool Operational Requirement, Test Case, Tool Problem, Review Criteria, External Documentation, Task, Content
- Documents: Tool Chain Qualification Report, Tool Qualification Report, Tool Operational Requirements Specification, Tool Operational V&V Specification, Tool Service History Report, Tool Documentation, Document Review Checklist, Test Result Review Checklist
- Test Runs: Tool Operational Test, Document Review, Test Result Review
A demonstration of the TQK:
The installation package contains
- Polarion project template with demo data
- Polarion project template without demo data
- All necessary Java extensions
- Original and forked Multilevel Traceability Widget (need to be used in parallel)
- Setup Guide and User Guide
Note
The Tool Qualification Kit (TQK) for DO-330 currently only supports Tool Qualification Level (TQL) 5 of RTCA DO-330 Software Tool Qualification Considerations. However, since the source code of all necessary extensions is openly available, it can be extended to support tool qualification according to TQL 1-4.
