PlantUML Integration

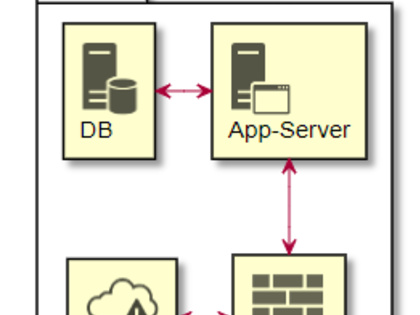

 The widget renders PlantUML text diagrams in LivePages.

Description

share this page via facebook share this page via LinkedIn share this page via Twitter share this page via Google+ share this page via email More sharing services

PlantUML in Live Pages

Preconditions
the plugin does not use the official PlantUML Server for rendering, but includes the library.

To be able to render the graphics in Polarion the only precondition is to install Graphviz on your server.



Getting Started

See http://www.plantuml.com/ for examples and the syntax documentation.

The Standard Lib of PlantUML also includes libraries from third party contributors.

  • AWS Library
  • Cloud Insight
  • Devicons and Font Awesome library
  • Google Material Icons
  • Office
  • ArchiMate


See http://www.plantuml.com/stdlib for more information.



How to Install

  1. Download and unzip the packaged extension.
  2. Move file com.siemens.mobility.plantuml.widget_<version>.jar from the zip file com.siemens.mobility.plantuml.widget_<version>.zip into: <Polarion Installation Folder>/polarion/extensions/com.siemens.mobility.plantuml.widget/eclipse/plugins/.
  3. Restart Polarion.



Version

PlantUML - MIT License Version 1.2019.1





Information

Vendor Ben Herfurth (Siemens PLM)
Published Version 1.0.0 - February 2019
Categories
Price Free
59 Downloads
Unsupported Extension This extension is not supported by Siemens PLM.
Requirements
  • Java 1.8+
  • Graphviz 2.3+
