SimPol - Simulink-Polarion Connector

 SimPol is a free MATLAB® toolbox to create, maintain, and verify bi-directional traceability between Polarion® ALM products and MATLAB® Simulink®, Stateflow®, as well as Simulink® Test™. The tool supports generation of requirement allocation files and can handle different linking modes like direct linking or the creation of a shadow model in Polarion®. Trace analysis helps to detect and repair broken links, identify missing coverage, and review the implementation or test cases of supspected requirements.


share this page via facebook share this page via LinkedIn share this page via Twitter share this page via Google+ share this page via email More sharing services

Allocation of work items

  • Create allocation files specifying a set of work items in Polarion to be implemented and linked
  • Distribute allocation files to developers



  • Bi-directionally link Simulink and Stateflow model elments with any Polarion work items
  • Bi-directionally link Simulink Test Files, Test Suites, or Test Cases with any Polarion work items
  • Bi-directionally remove links

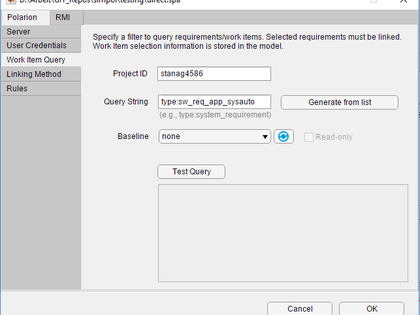

  • Use methods to query, search, filter work items (e.g., to find all unlinked items)

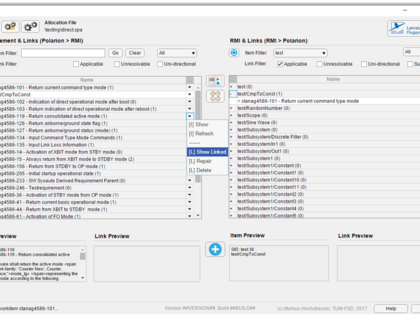

  • Improve your workflow by using a side-by-side view with Simulink for seamless linking with a minimum of clicks
  • Choose between linking modes: Direct Linking and Surrogate Linking (incremental creation of  a shadow model in Polarion)
  • Include model snapshots into linked work items
  • Write custom rules to select linkable primitives in Simulink and Stateflow



  • Show suspected model elements or test cases, which link to a changed work item.
  • Unsuspect model elements and test cases after adaption
  • Detect uni-directional and broken links and repair them automatically
  • Update model snapshots automatically
  • Synchronize the surrogate model

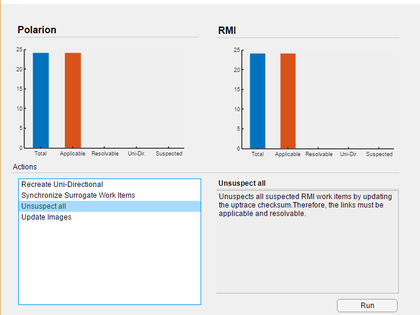

  • Analyze link healthiness
  • Load a Polarion baseline for review



What's New in Version 2.5

Updated April 2021

Version 2.5 (19. Apr. 2021)
- Several bug fixes
- Code cleanup

Version 2.4.5 (28. Oct. 2020)
- Annotation linking in Simulink added
- Improved GUI
- Following bugs are fixed:
-> Matlab code linking bug in R2019b onwards
-> Polarion time-out issue fixed
-> Compatibility with requirement coverage check (hisl_0070) for derived tag
-> Auto-suspicion from Polarion is properly propagated

Version 2.3 (7. Feb. 2020)
- Improved startup routine
- Support for linking Iterations in Simulink Test (R2019a onwards)
- Works for MATLAB R2019b
- Bug fixes and updated documentation

Version 2.2 (15. Feb. 2019)
- Added support for MATLAB Code (Beta)
- Improved support for SSL Connections with certificates
- Added selection linking via context menu
- Bug fixes

Version 2.1 (4. Sept. 2018)
- Bug fixes




Vendor Markus Hochstrasser & Shanza Ali Zafar (Technische Universität München)
Published Version 2.5 - April 2021
Price Free
Community Supported Extension This extension is not supported by Siemens PLM.
Requirements MATLAB/Simulink, Simulink Requirements 2019a or later

Tested with Polarion 20 R1 (3.20.1) and later
